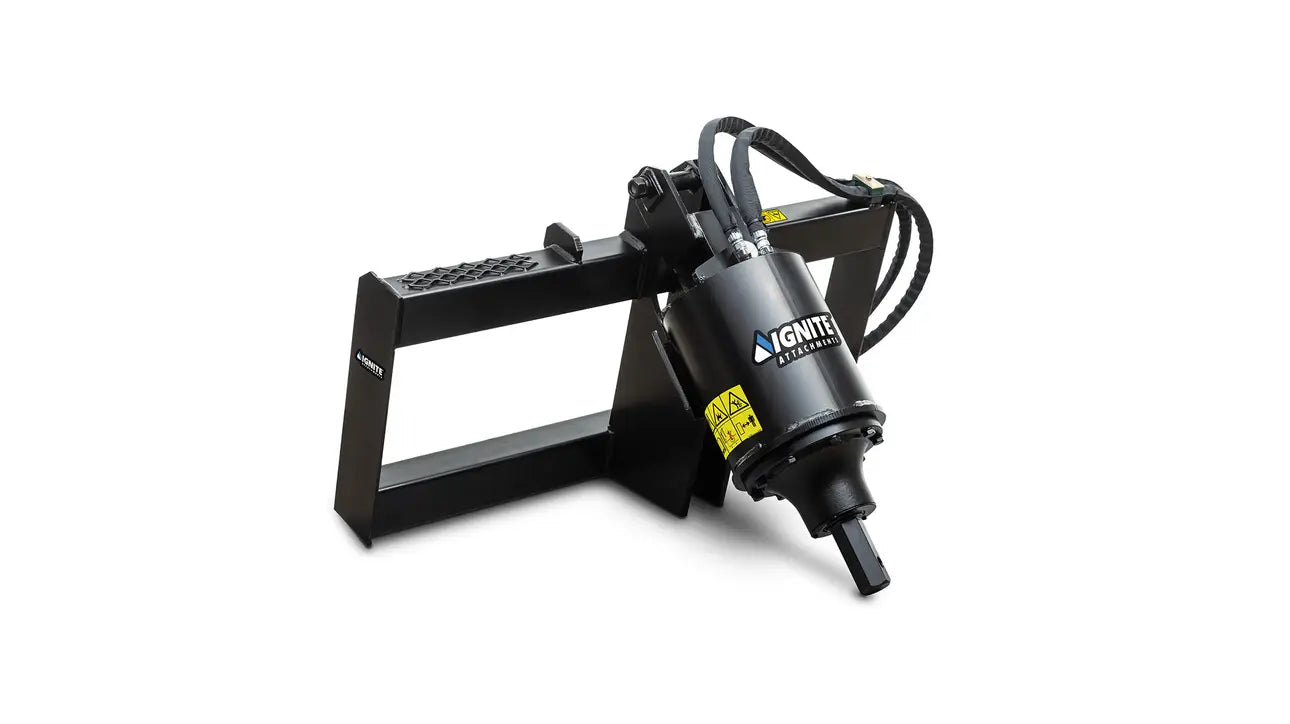

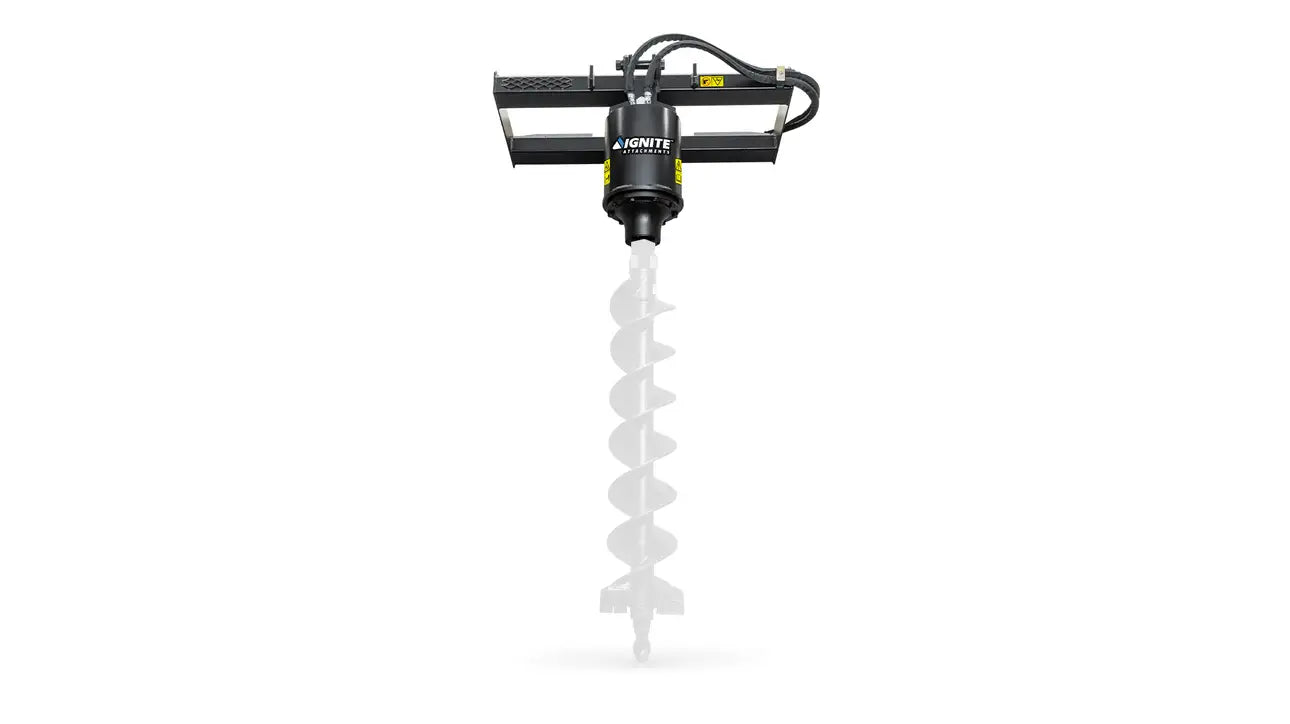

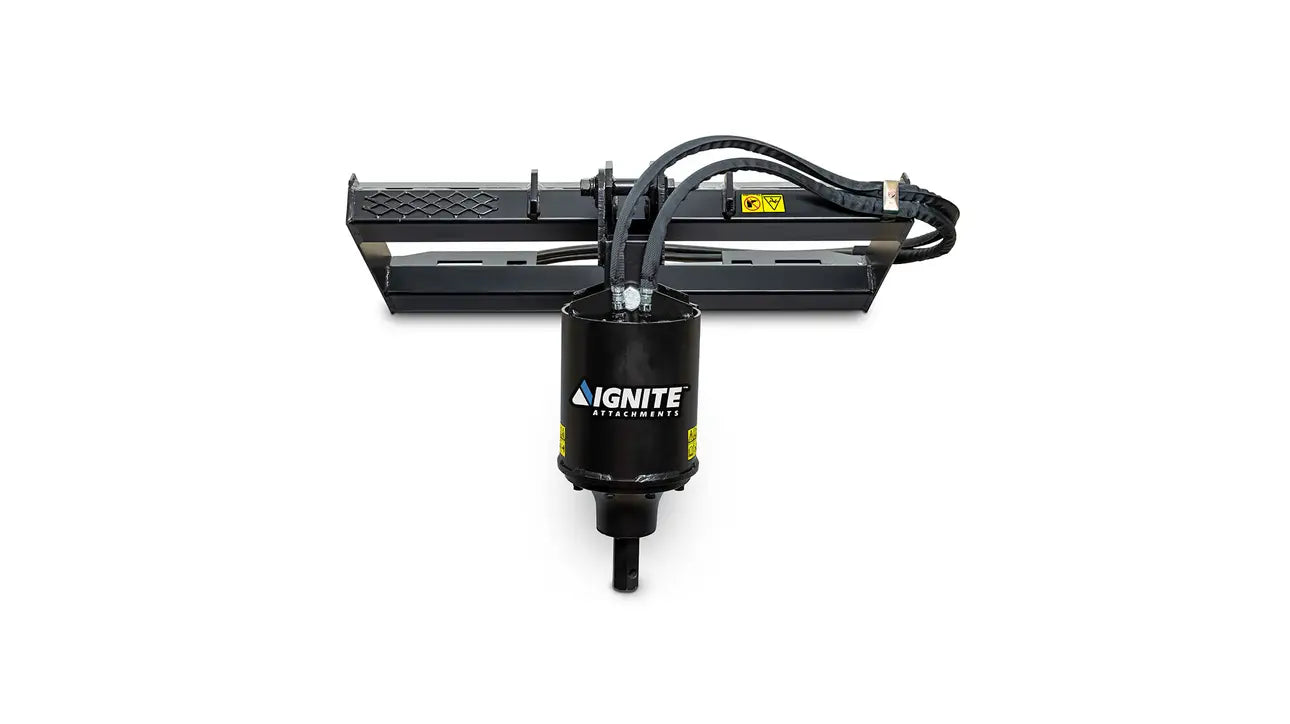

Ignite 210PH Planetary Hex Auger – Built for Tough Ground
The Ignite 210PH Planetary Hex auger is engineered to slice through stubborn terrain with ease—drilling up to 50 inches deep using a standard bit, or reaching an impressive 86 inches with an optional extension. With a flow range of 15 to 30 gallons per minute, it performs efficiently across a broad spectrum of carrier machines.
At its core, the auger’s planetary drive system uses precision gear mechanics to deliver high torque output, making it ideal for piercing through demanding substrates like shale, rocky soils, heavy clay, or frozen ground. A specialized joint between the mounting frame and drive unit ensures the auger stays true, delivering clean, vertical holes—even when the loader is positioned on uneven surfaces.
Warranty: 12-month warranty.
|
Attachment Interface |
Universal Quick-Attach |
|
Overall Width |
45 in. |
|
Drive Unit Width |
11.25 in. |
|
Drive Unit Height |
33.5 in. |
|
Weight with Mount |
310 lb. |
|
Max Bit Size |
36 in. |
|
Drive Shaft |
2 in. Hex |
|
Pressure Range |
2,000 - 3,500 psi |
|
Torque @ 3000 psi |
2,562 lb/ft |
|
Max Flow |
30 gpm |
|
Speed at Max Flow |
104 rpm |
|
Quick Couplers |
Faster Flat Face (CUP) |
|
Options |
Hex-to-Round Adapter, 24 in. Extension, 36 in. Extension |
