66-Inch Rake Grapple
66-Inch Rake Grapple
Couldn't load pickup availability
Detail:

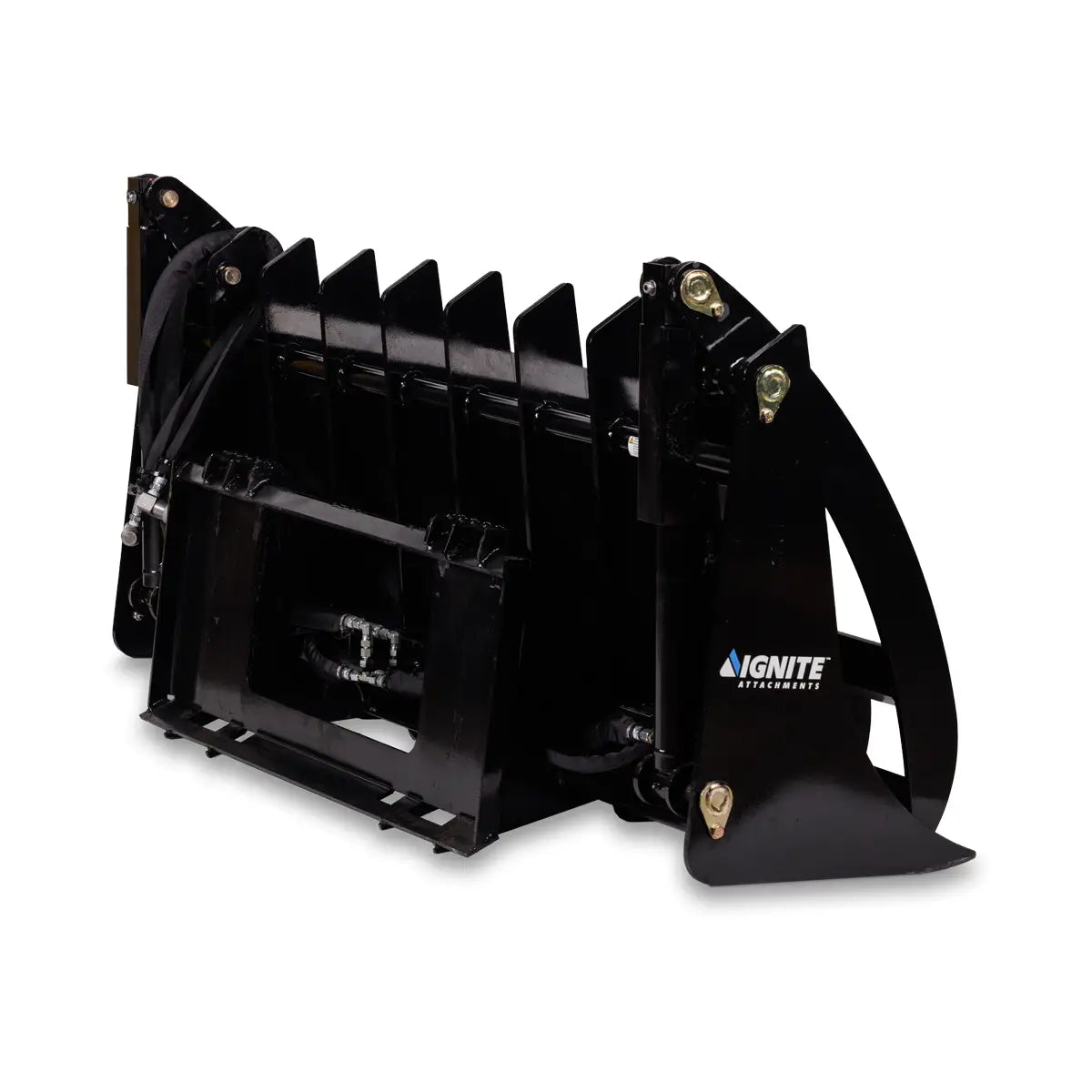

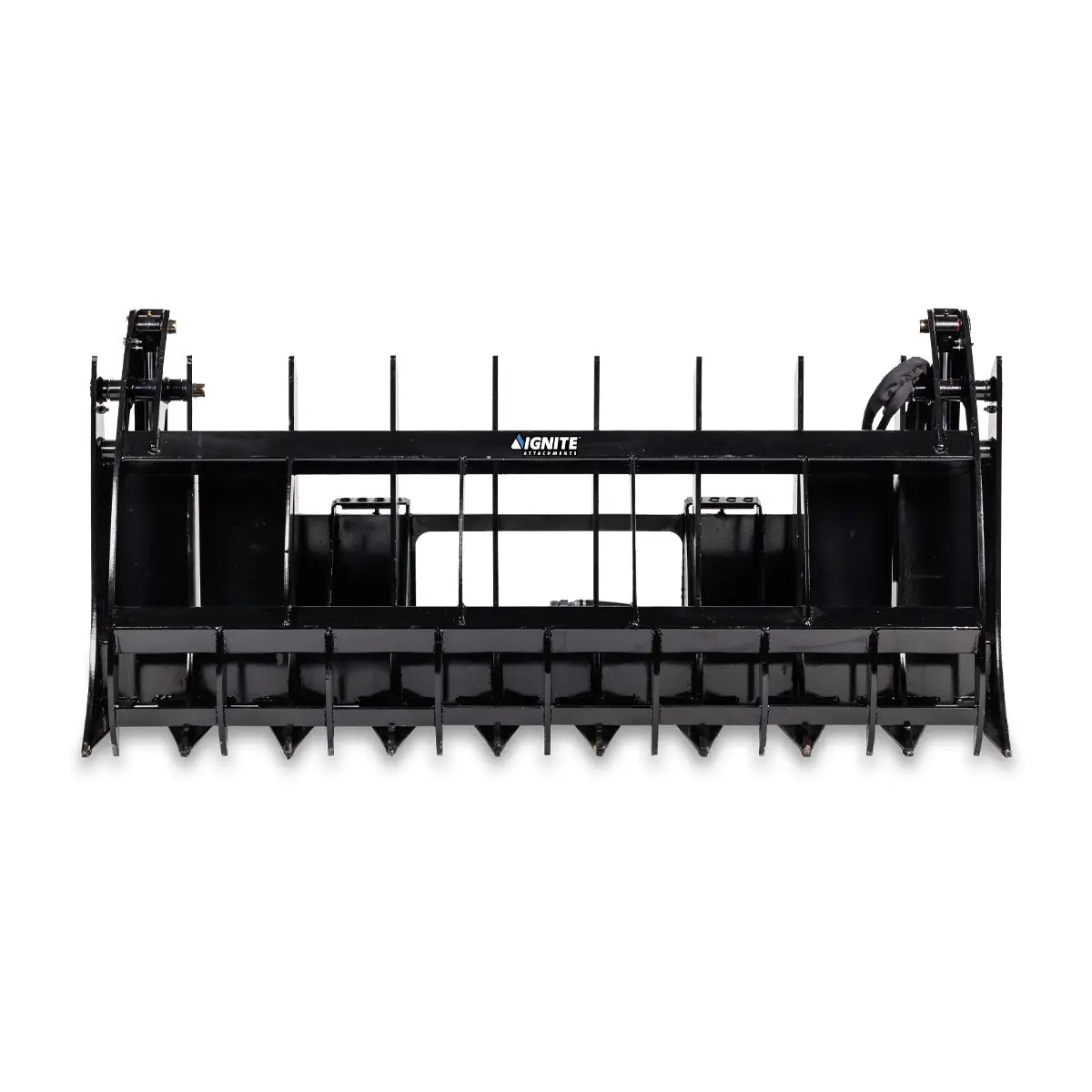

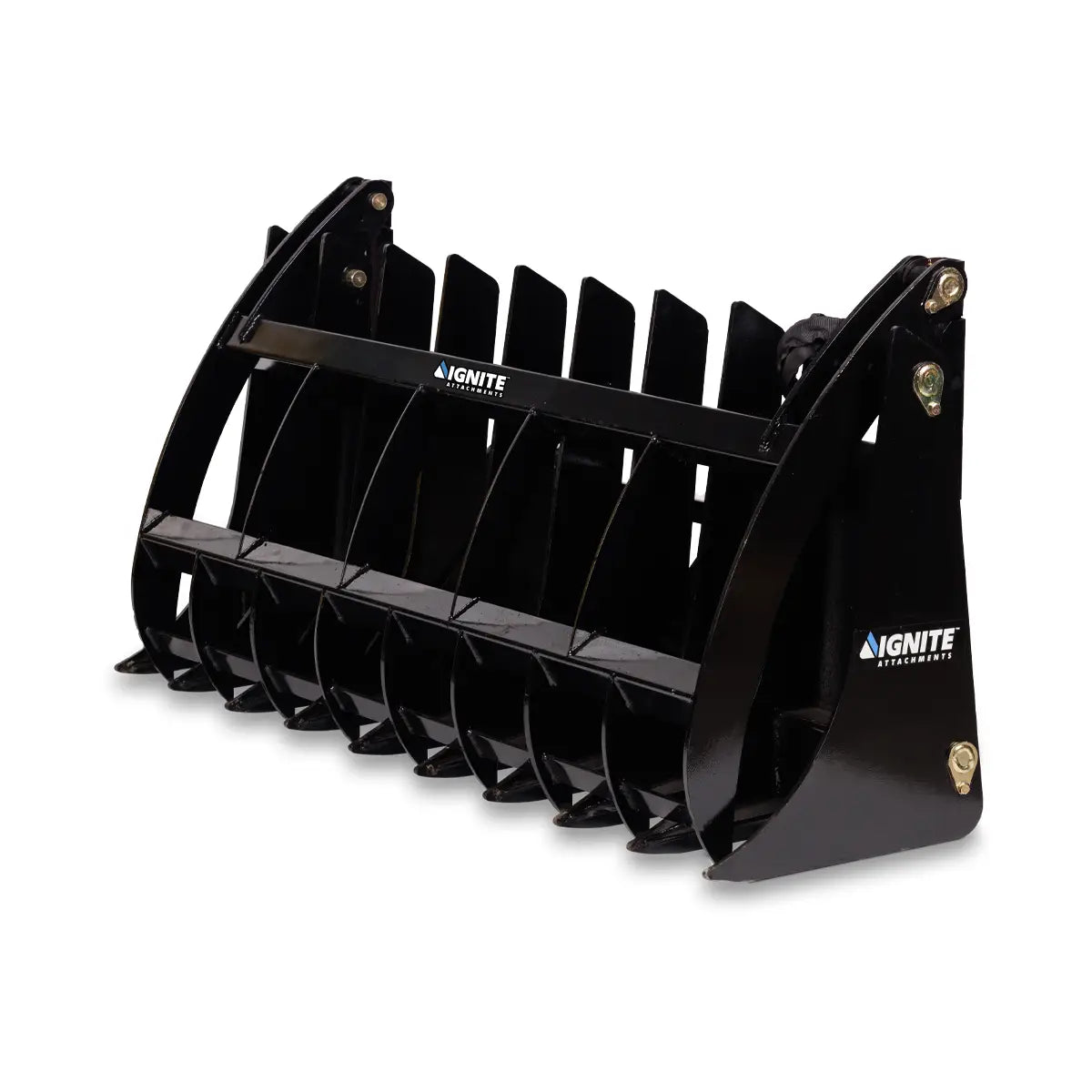

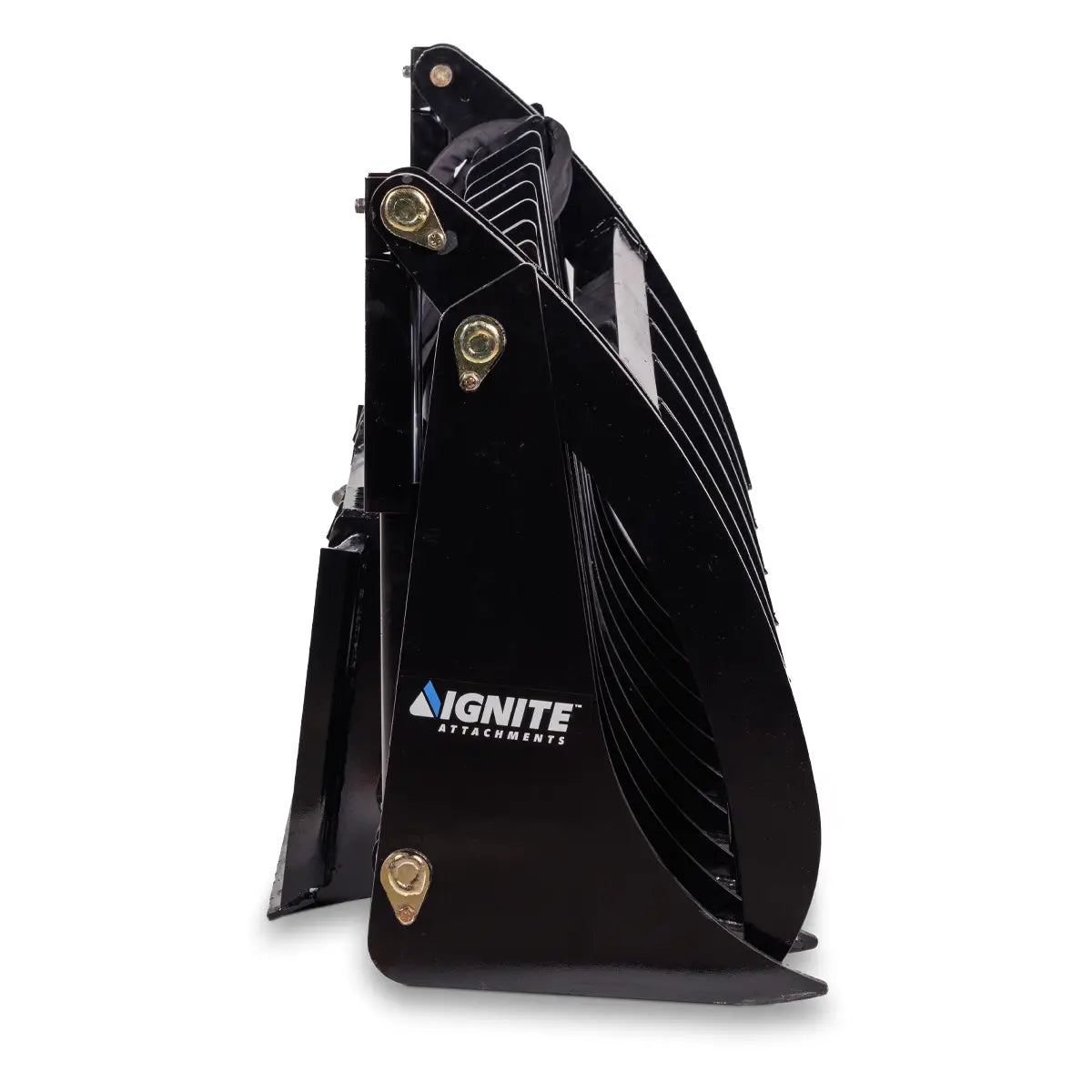

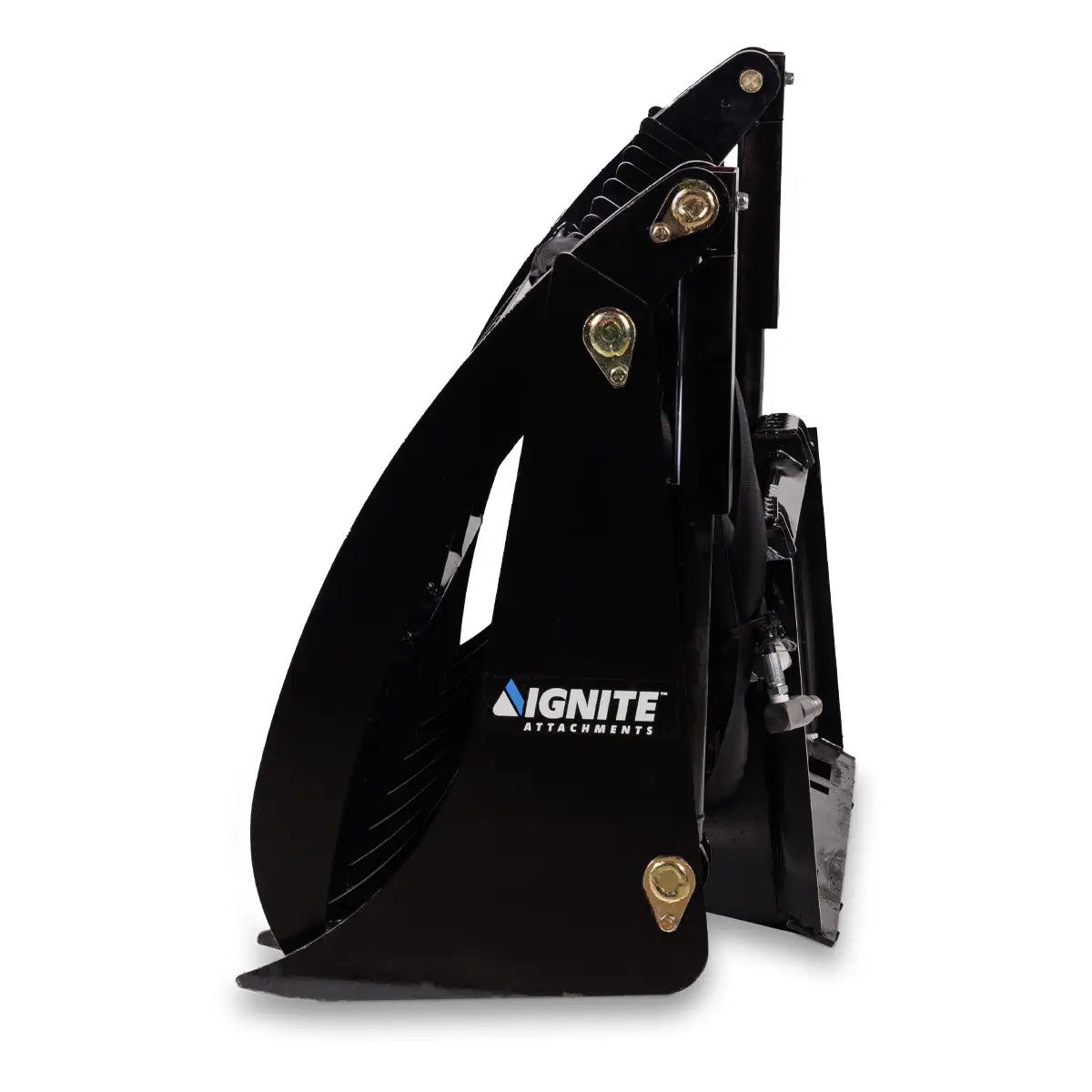

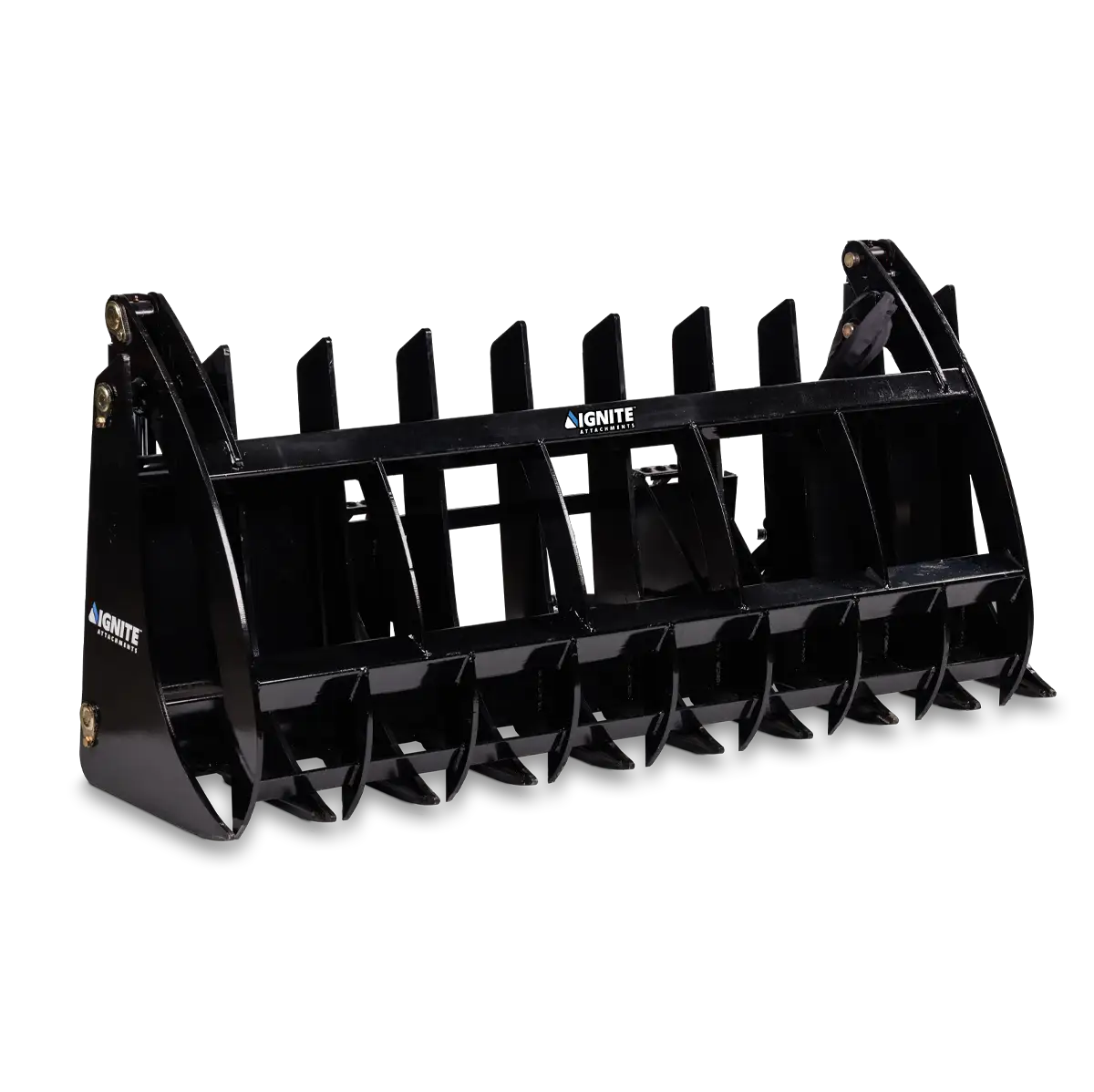

Clear debris fast with the Ignite™ Rake Grapple—built for aggressive cleanup without disturbing the soil. Use it as a rake to pull up roots, limbs, and debris, then clamp down with the top-mounted grapple to load material directly into a trailer or dump truck—no need to switch attachments.
Available Sizes:
- 66-inch, 78-inch, and 84-inch widths to match your machine and job scope
Engineered for Efficiency:
- Shorter, reinforced tines prevent hang-ups and damage when raking large areas
- Closer tine spacing improves material capture without sacrificing durability

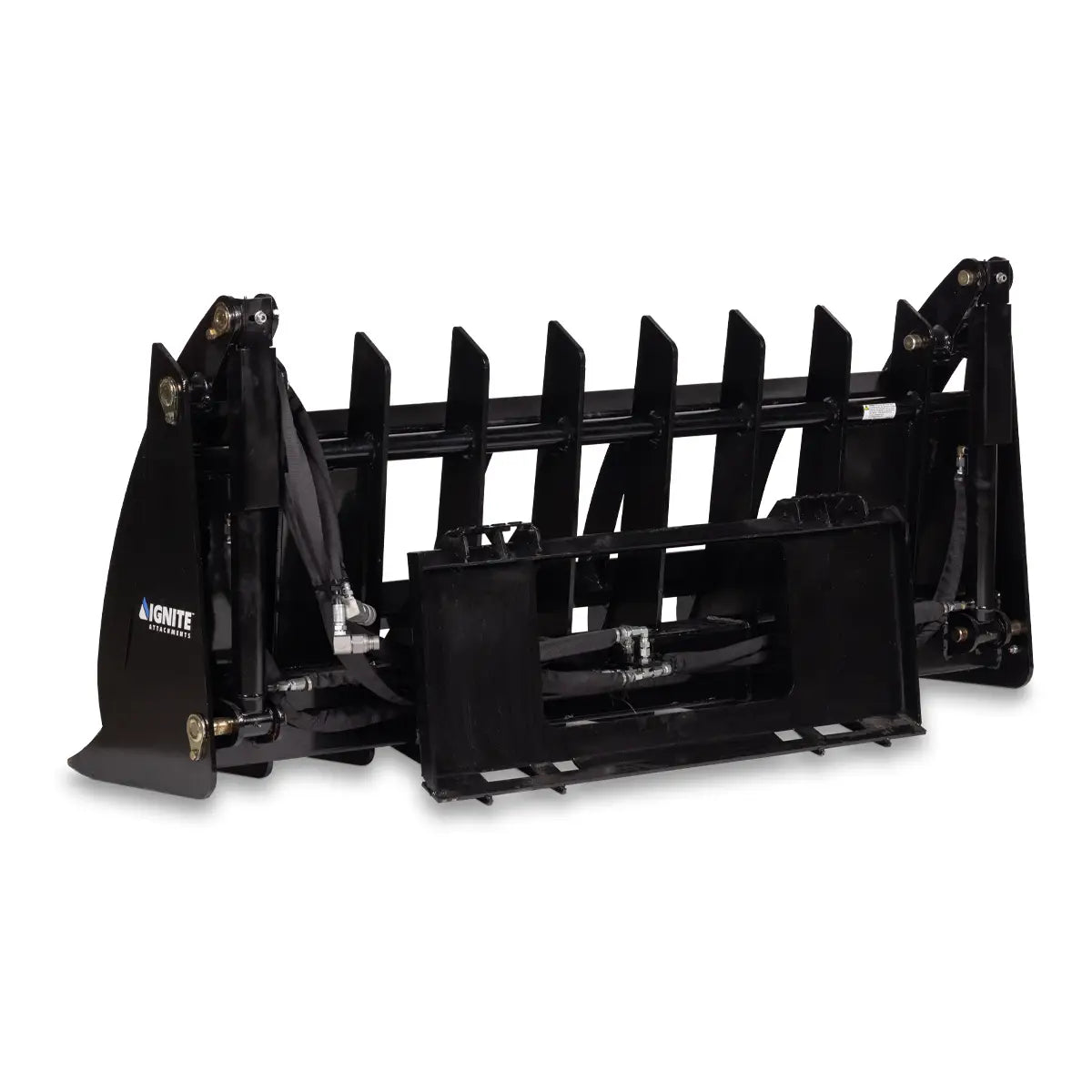

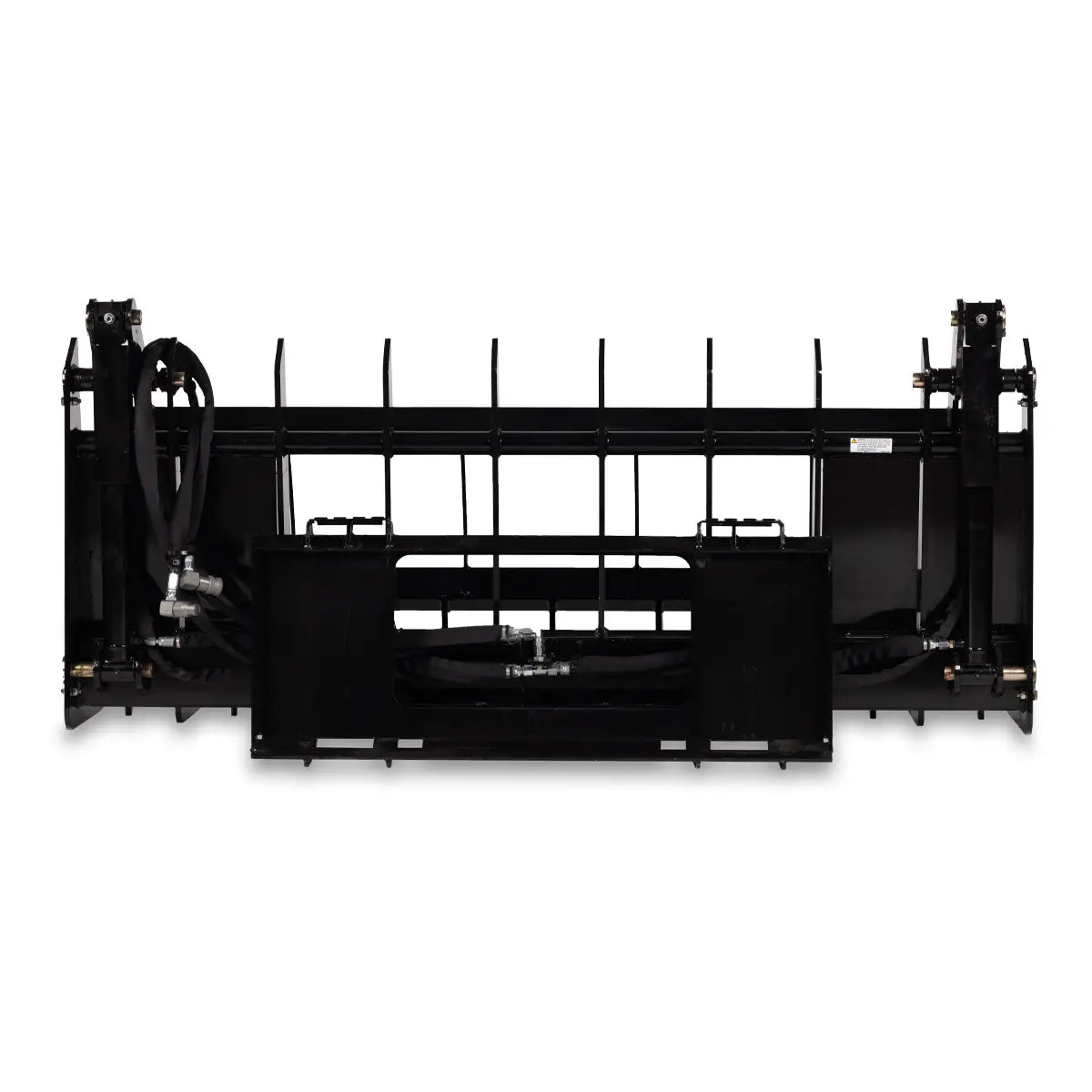

- Universal skid steer-style interface ensures fast installation across manufacturers
- High-strength steel frame built to withstand demanding conditions
- Greasable pins and bushings for long-term performance
- Heavy-duty cylinders positioned behind the grapple for added protection
- Single clamshell-style top grapple delivers powerful clamping and efficient back raking
- Faster flat face couplers connect quickly, even under pressure
Top Applications:
- Raking and gathering debris while leaving soil undisturbed
- Clearing tree roots, limbs, and brush from large areas
- Loading debris into trailers or dump trucks with minimal effort
How It Works:
The Ignite Rake Grapple functions as a rake to collect surface debris. Once gathered, the clamshell-style grapple clamps down securely, allowing you to pile or load material with precision—all without changing tools.
Warranty: 12-month warranty
Specifications:
|
Overall Width |
66 in. |
|
Overall Height Grapple Closed |
37.2 in. |
|
Grapple Opening |
47.9 in. |
|
Cylinders |
2 (2.0" Bore) |
|
Quick Coupler |
Faster Flat Face (CIP) |
|
Tine Thickness |
.5 in. |
|
Top Grapple Style |
Single |
|
Weight |
661 lb. |
