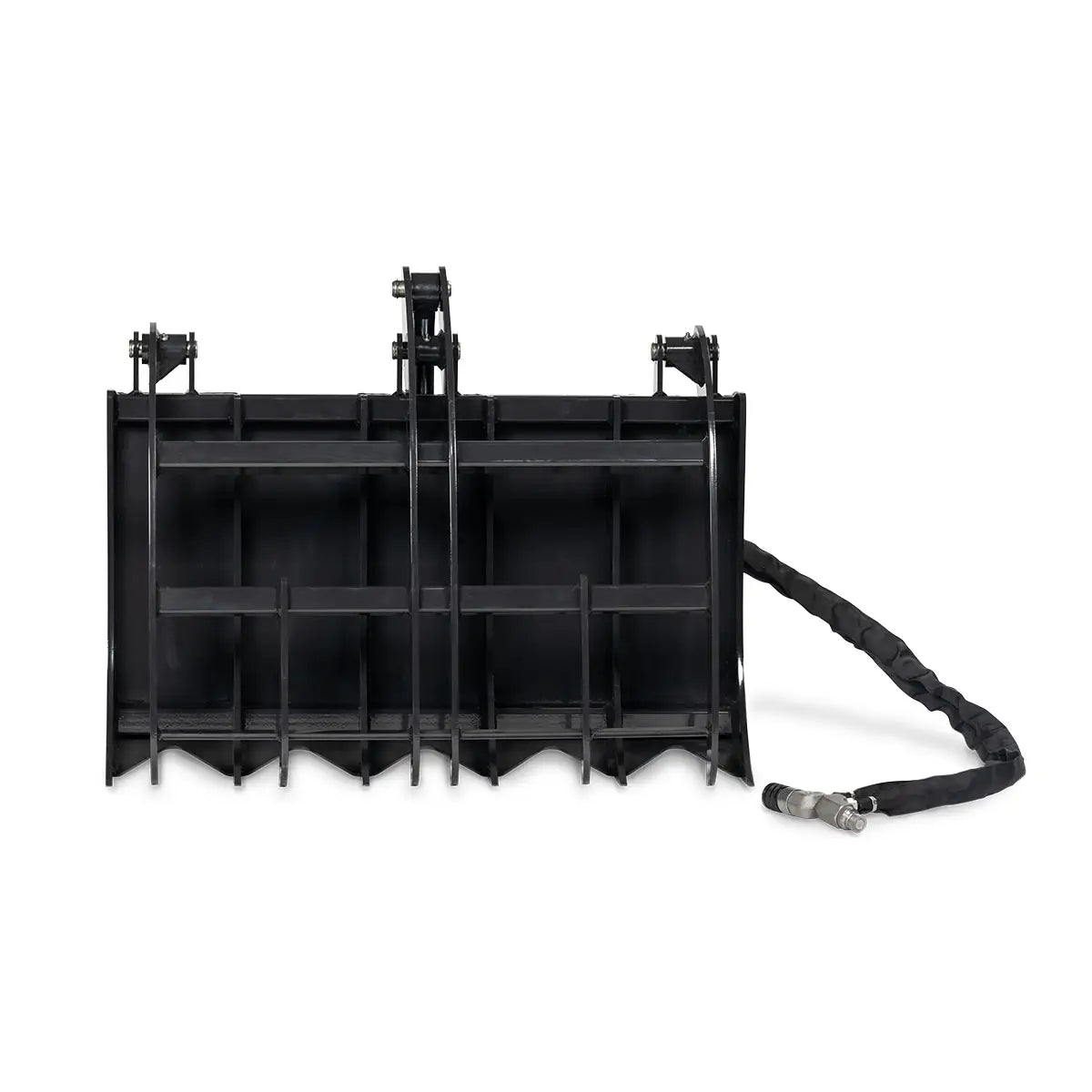

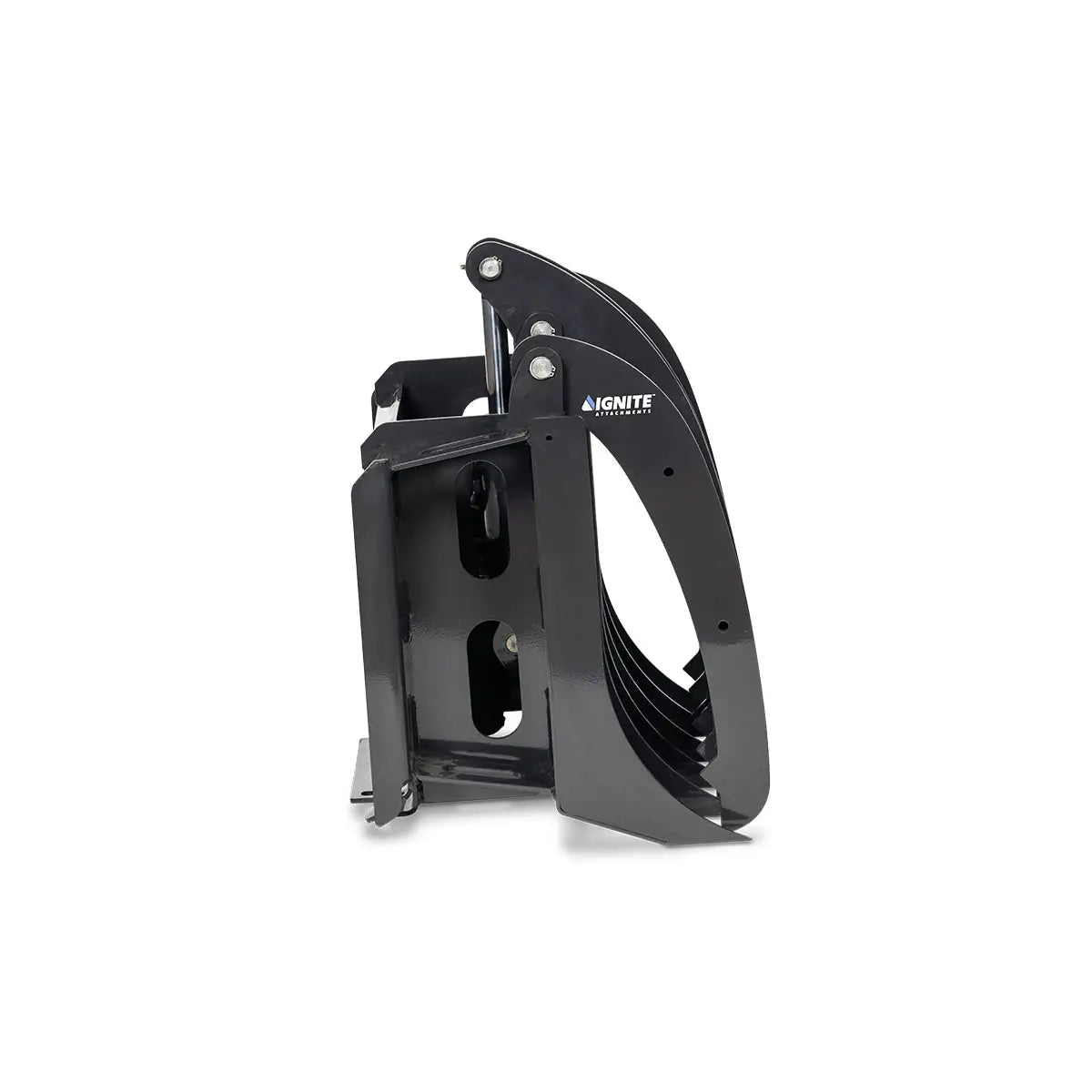

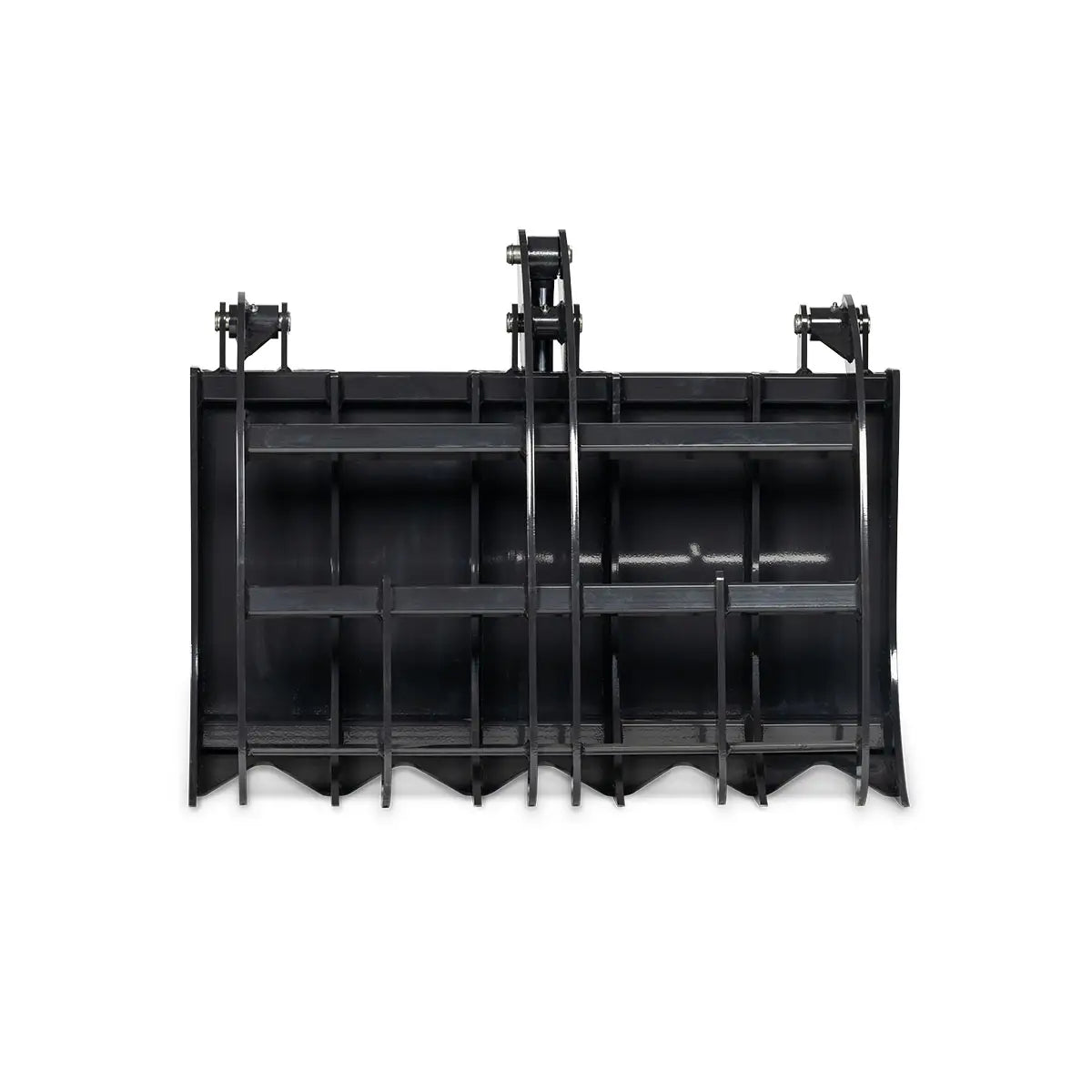

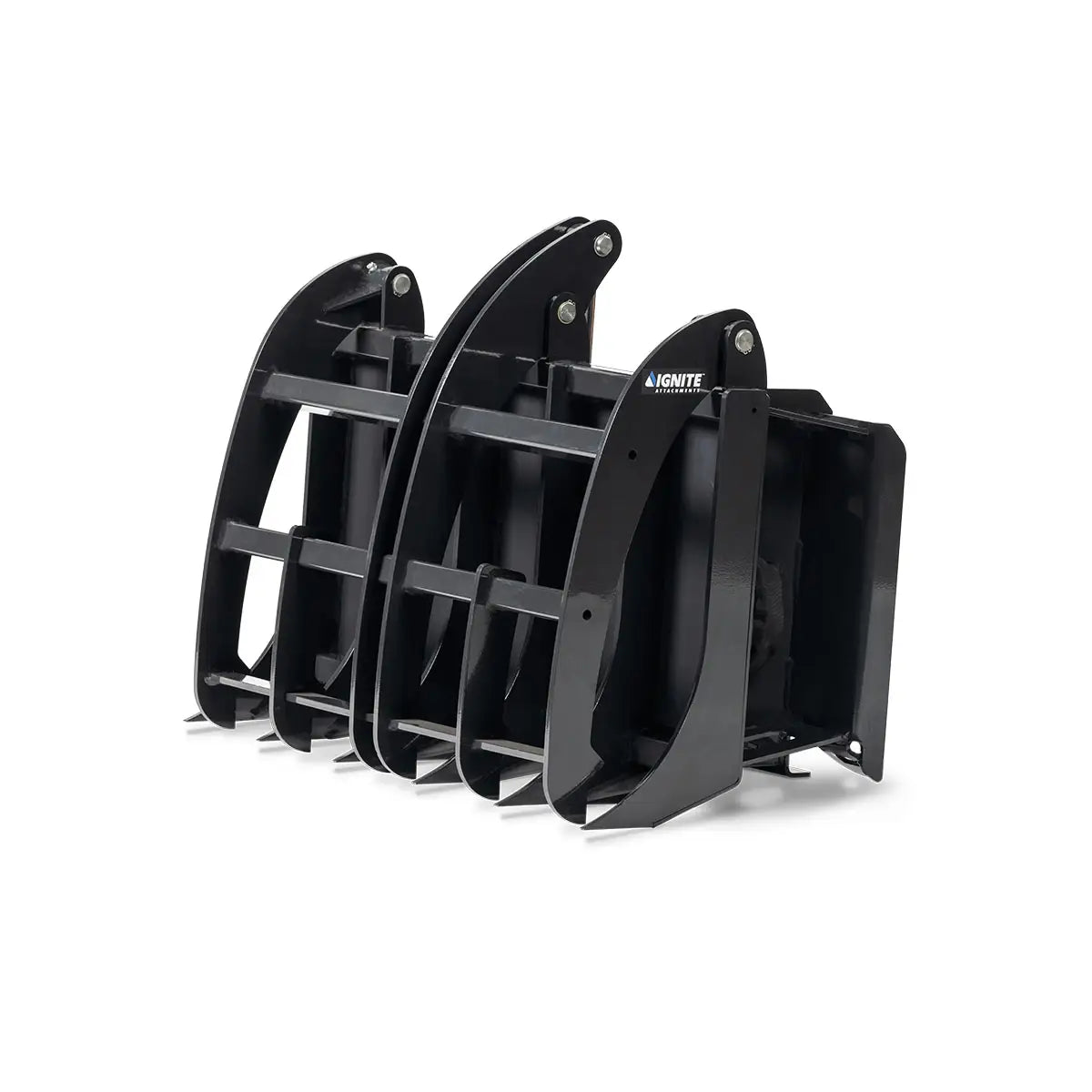

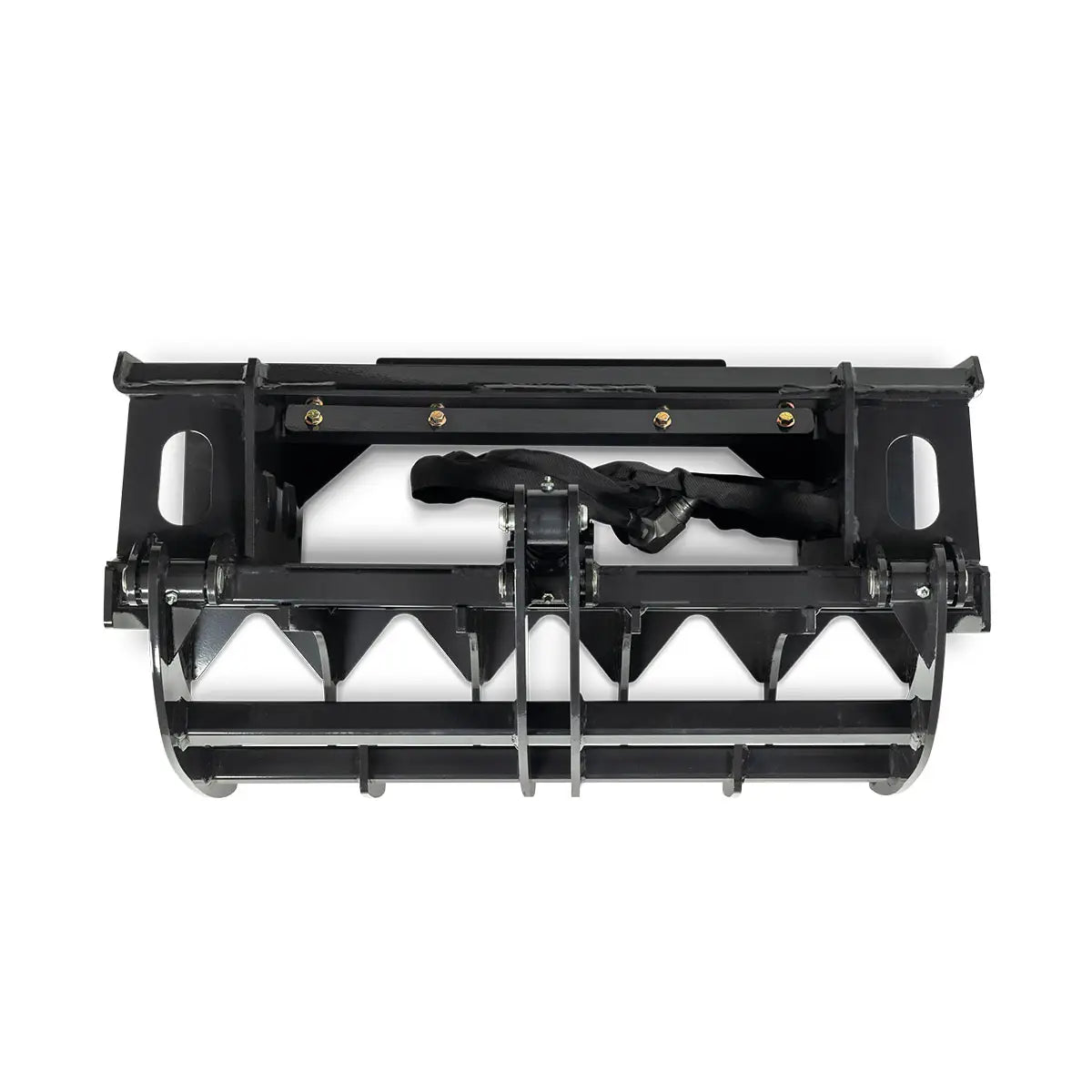

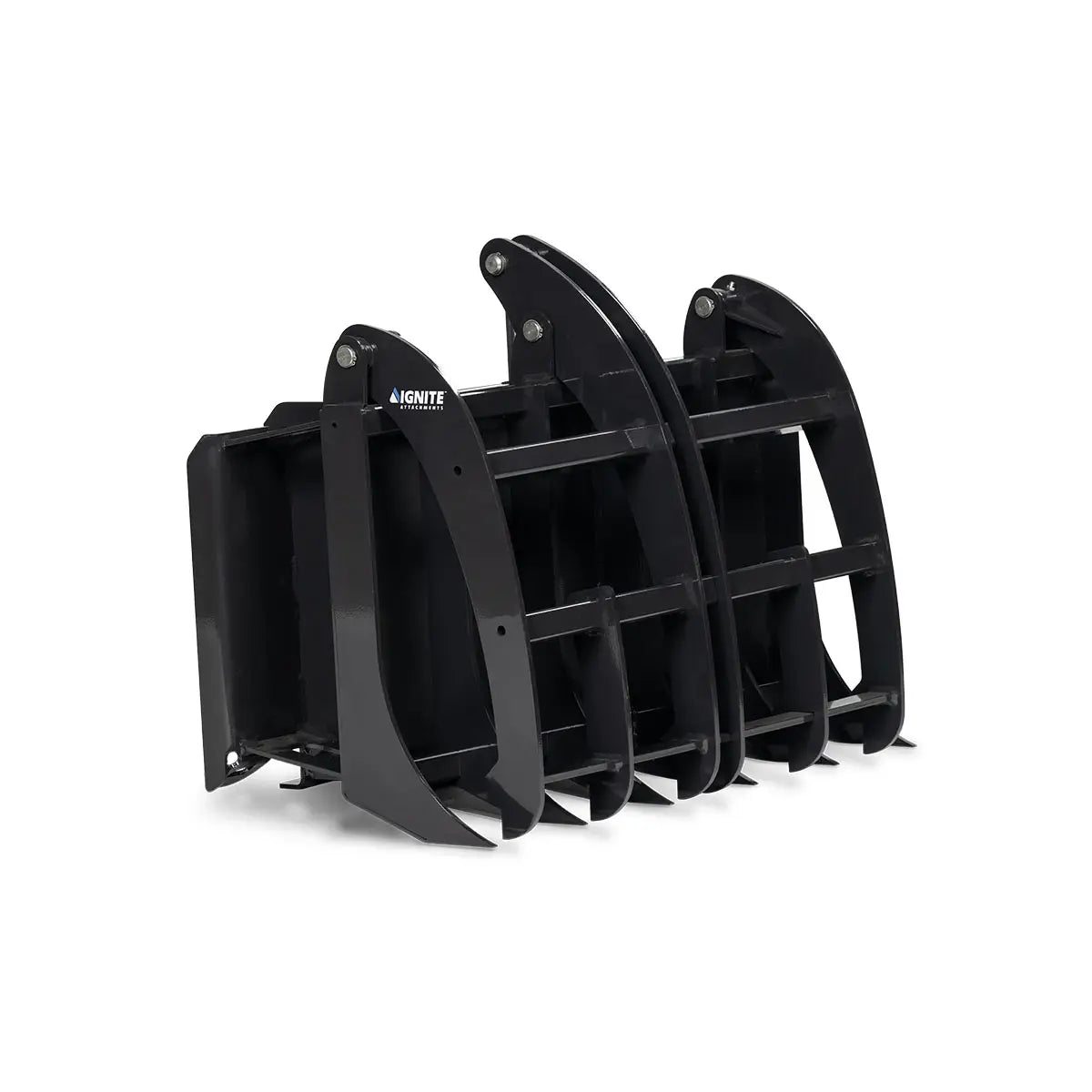

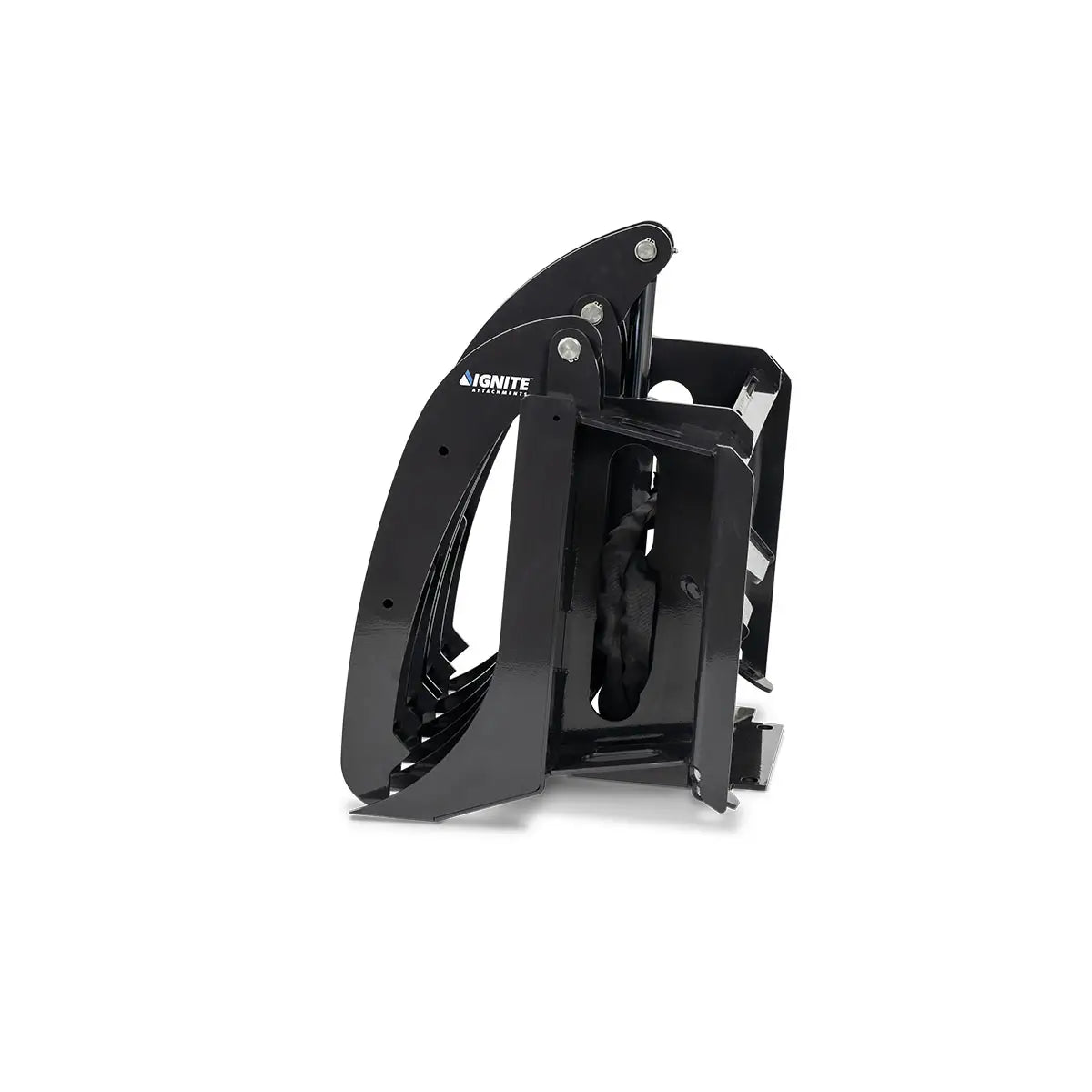

36 Inch Mini Rake Grapple
36 Inch Mini Rake Grapple
Couldn't load pickup availability
🔥 Ignite Mini Rake Grapple: Small Footprint. Big Bite.
Don’t let its size fool you—the Ignite mini rake grapple delivers serious performance. Built for mini track loaders, it clears limbs, roots, and debris with minimal soil disruption, just like its full-size counterparts. And thanks to its compact form, it slips into tight spaces the big grapples can't touch.

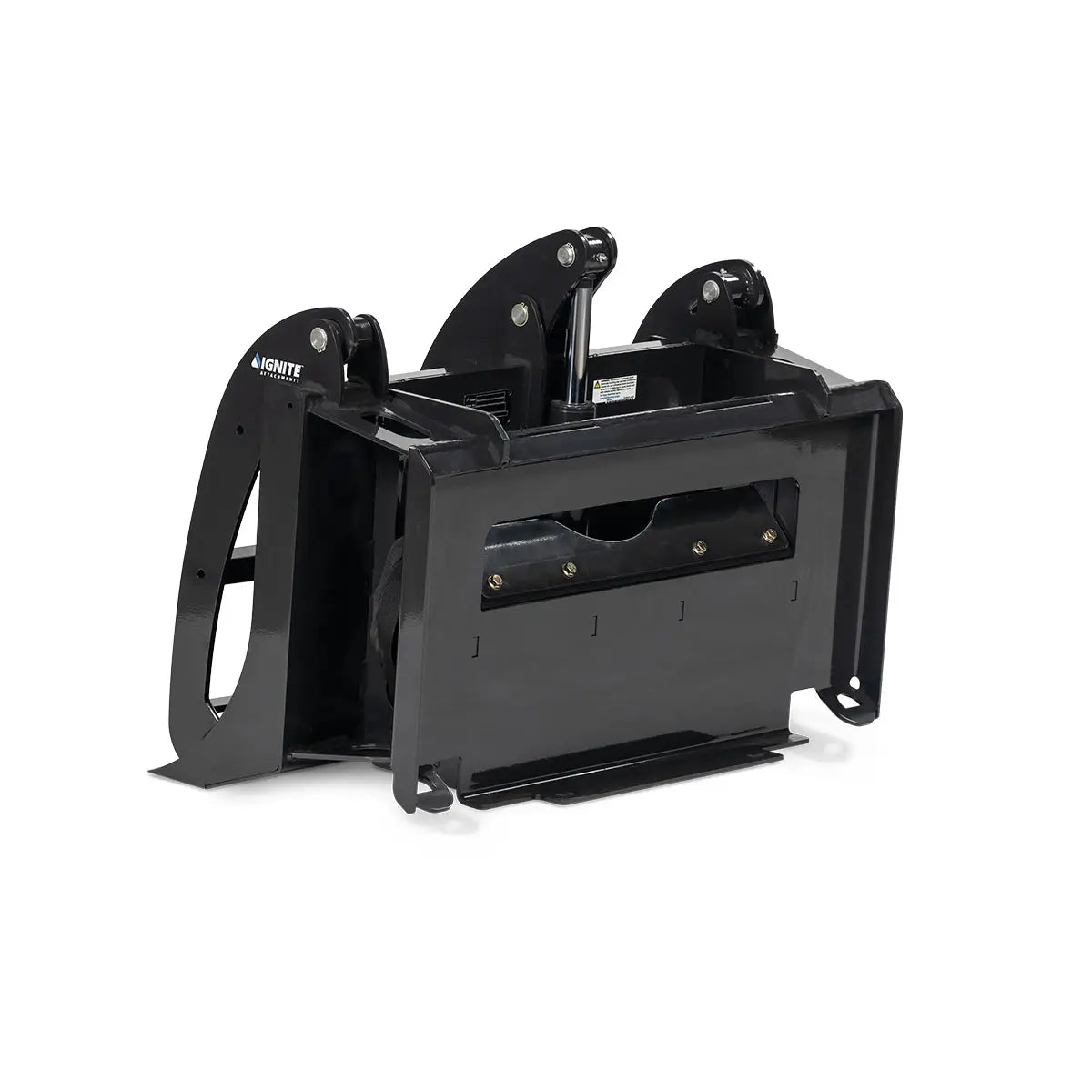

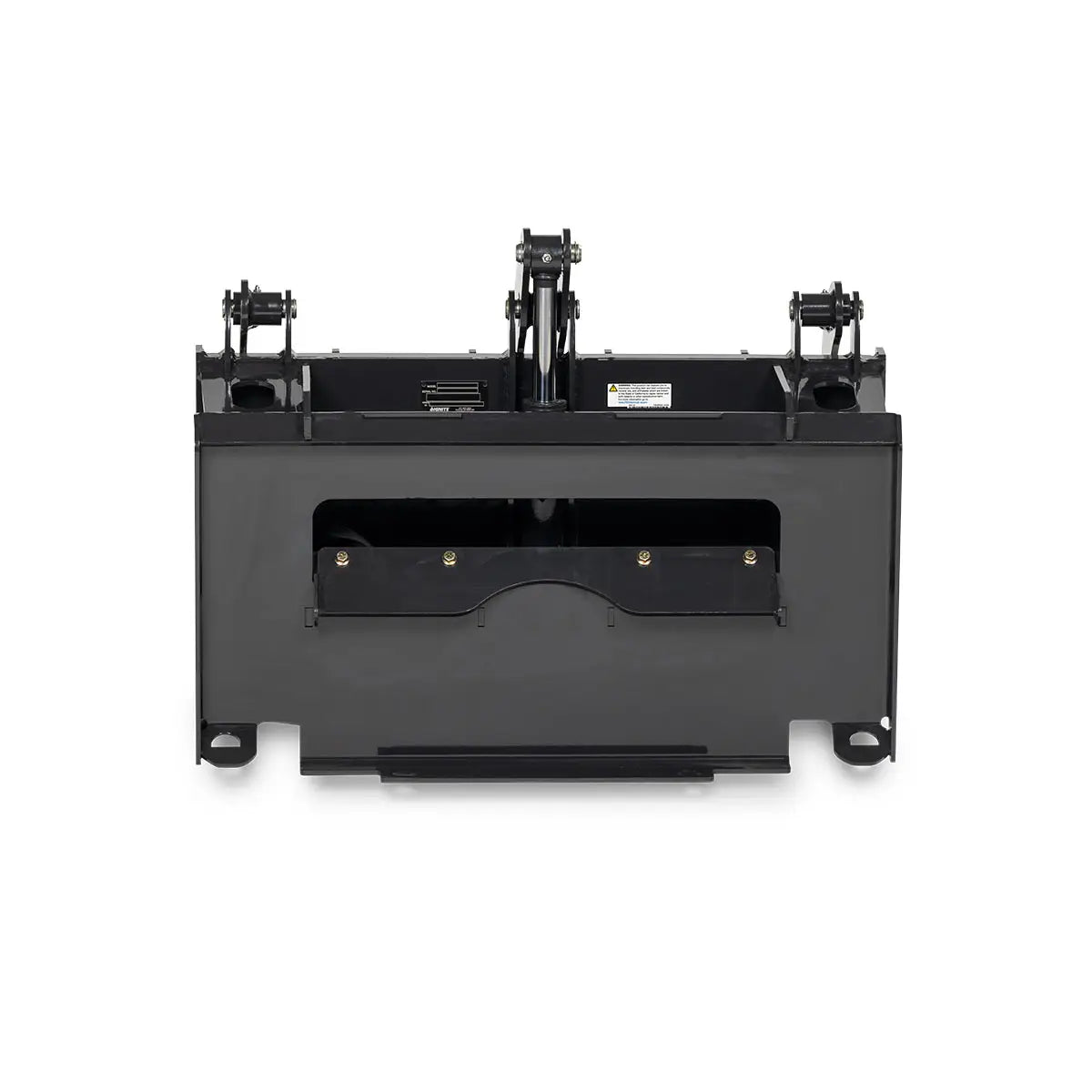

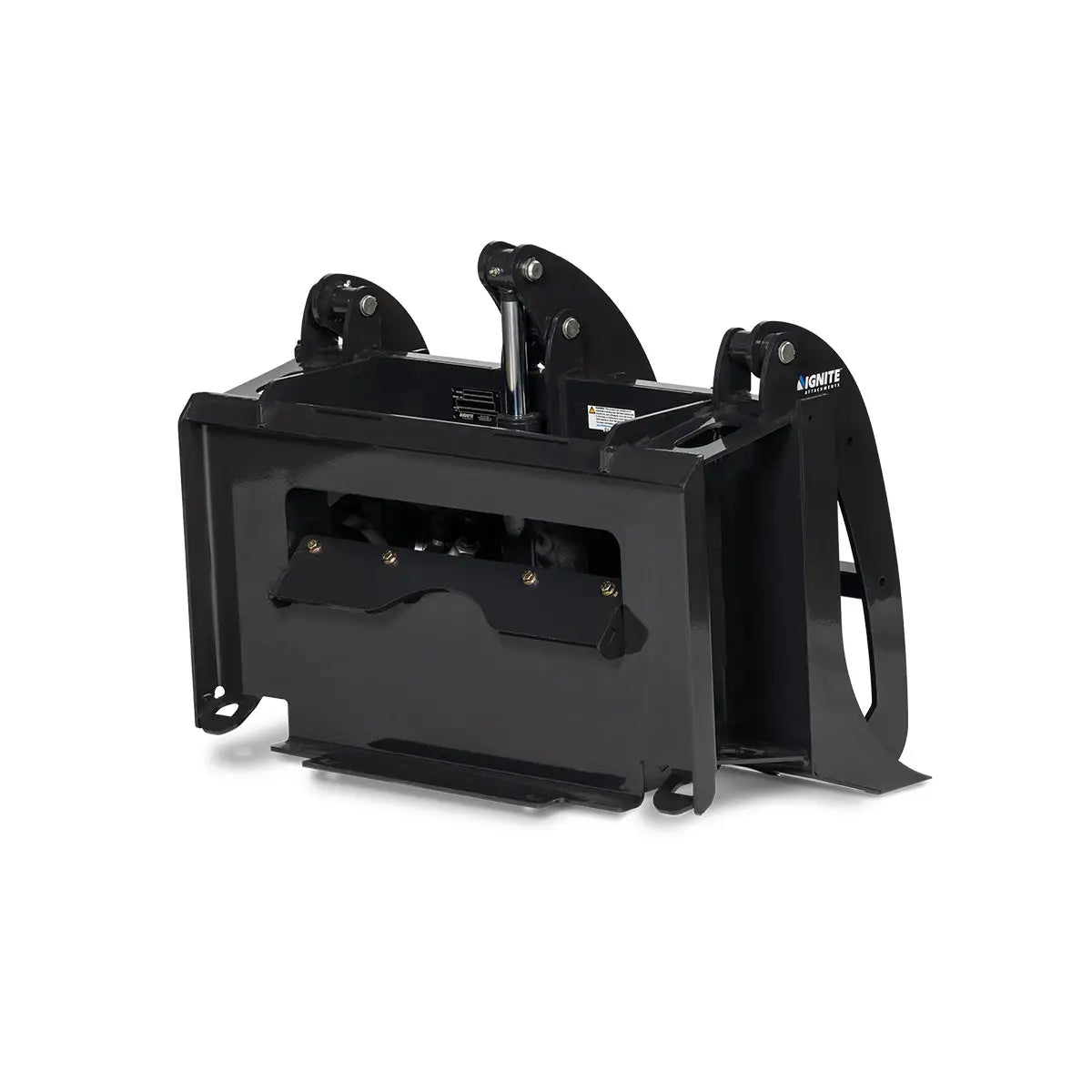

Clamp down. Load up. Move on. With rake-on-top clamping action, you can gather and relocate debris without ever switching attachments. Its innovative dual interface connects seamlessly to any brand of mini track loader—perfect for rental centers and mixed fleets.
🛠️ Built to Excel
-
Laser-Cut Steel Construction
Precision engineering for tighter fit and superior durability. -
Protective Nylon-Sleeved Hoses
Rugged, weather-ready shielding to reduce downtime. -
Heavy-Duty Cylinder Protection
Reinforced for rough terrain and extended wear. -
Greaseable Pins
Increased service life through enhanced durability. -
Faster Flat-Faced Couplers
Connect under pressure—fast, clean, and hassle-free.
đź§© Available in 36" and 44" sizes to match your loader and workload.
đźš§ How It Works
Rake across the surface to collect roots, brush, and debris. Then activate the clamshell grapple to clamp down securely, forming large loads for transfer to a dump site or trailer—no need to swap tools.
Warranty: 12-month warranty
Specifications:
|
Weight |
304 lb |
|
Width |
36 in |
|
Depth |
20.9 in |
|
Overall Height Grapple Closed |
28.4 in |
|
Overall Height Grapple Open |
33.6 in |
|
Cylinders |
1 (2.0" Bore X 1.25" Rod) |
|
Max Grapple Opening |
36 in |
|
Quick Couplers |
Faster Flat Face (CUP) |
|
Material |
Grade 50 |
|
Top Grapple Style |
Single |
|
Tine Thickness |
0.375 in |
|
Tine Spacing |
6.75 in |
|
Max Operating Pressure |
3500 PSI |
